Well there is no such thing as a standard in the cycling world. There never has been however Carbon Ti has it covered. Light weight and equisitly machined rear axles for the bolt thru standards.
While these are all 12mm axle, drop out width on bikes varies.
Each axle variant is available in a variety of colours - black, red, gold, green, acid green, blue and silver
The variation available are as follows. Take the time to read. Best viewed on a large screen.
Thru axle specifications in this link
Installation instructions here

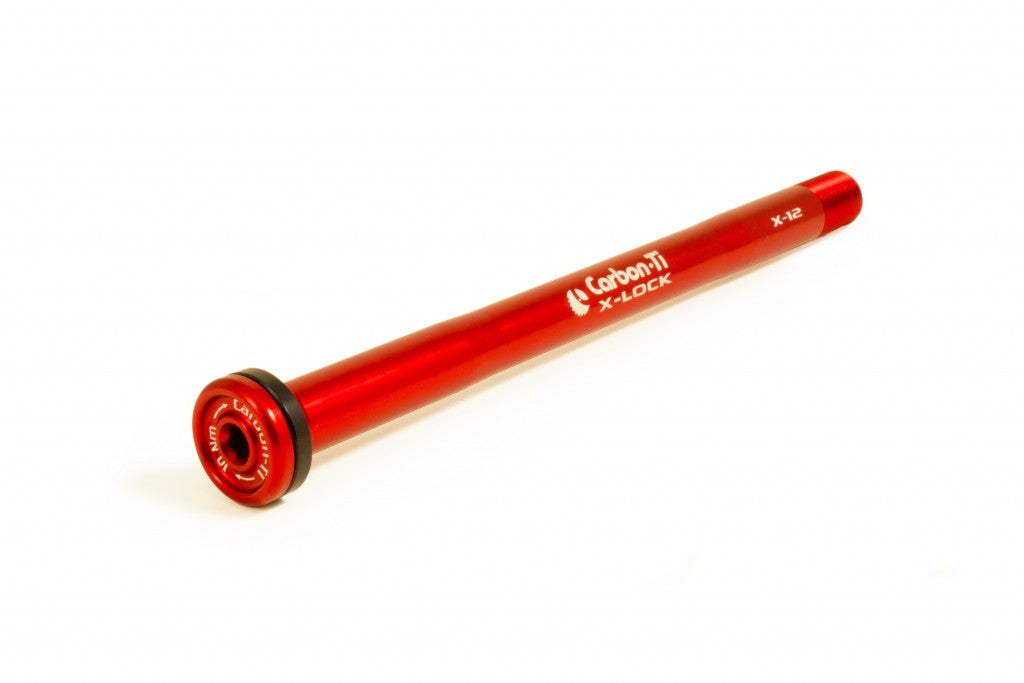

X-Lock X-12 (159mm)
Superlight Al7075 rear axle with X-12 (142 mm) Syntace standard. Excellent stiffness, variable thinckness axle, 5 mm hex key for a fast and safe closing (wrench not provided).
Tested by the Specialized Factory Racing riders in the Olympics and in the World Cup stages.
Available in many anodized colours. Thread pitch: 1.0 mm.
Made in Italy
Weight 34g
Frames compatibility list
- Cannondale Scalpel 29er (2013-2015)
- Canyon Lux CF (2014-2015)
- Canyon Gran Canyon CF (2014-2015)
- Specialized S-Works Epic (2011-2017)
- Specialized S-Works Stumpjumper HT (2015)
X-Lock X-12 Boot 148 (166mm)
Superlight Al7075 rear axle with X-12 Boost 148 mm Syntace standard (166mm long). Excellent stiffness, variable thinckness axle, 5 mm hex key for a fast and safe closing (wrench not provided).
Tested by the Specialized Factory Racing riders in the Olympics and in the World Cup stages.
Available in many anodized colours. Thread pitch: 1.0 mm.
Made in Italy
Weight 34g
- Radon Jealous (2018)
- Specialized S-Works Epic (2018)
- Specialized Epic (2018)
- Specialized S-Works Epic HT (2017-2018)
- Specialized Epic HT (2017-2018)
X-Lock X-Scott 12 x 142 (168mm)
Frames compatibility list
- Lynskey Pro 29 (2015)
- Santa Cruz 5010 (2014-2015)
- Santa Cruz 5010 V2 (2016)
- Santa Cruz Blur XC Carbon (2013)
- Scott Spark 700 (2014-2015)
- Scott Spark 900 (2014-2015)
- Scott Scale 700 (2014-2015)
- Scott Scale 900 (2014-2015)
X-Lock X-Scott Road 12 x 142 (158 mm)
Superlight AL7075 rear axle for Scott ROAD 12 x 142 mm., flat head, 158 mm lenght and M12x1.5 thread.
Excellent stiffness, variable thinckness axle, 5 mm hex key for a fast and safe closing (wrench not provided).
Available in many anodized colours.
Made in Italy
For Scot foil Disc
X-Lock X-Scott Boost 12 x 148 171.5mm
Excellent stiffness, variable thinckness axle, 5 mm hex key for a fast and safe closing (wrench not provided).
Available in many anodized colours.
Length: 171.5 mm.
Thread pitch: 1.0 mm.
Made in Italy.
Frames compatibility list
- Scott Spark RC Boost (2017)
- Scott Spark Boost (2017)
- Scott Scale RC Boost (2017)
- Scott Scale Boost (2017)
X-Lock X-E-Thru Road 12 x 142 (166 mm)
- Bianchi Oltre XR4 Disc (2019)
- Bianchi Zolder Pro (2019)
- Pinarello Prince Disk (2019)
- Tred Aracnide Titanio (2019)
- Ridley Noah
X-Lock X-E-Thru 12 x 142 (171 mm)
Frames compatibility list
- BMC FourStroke FS01 (2013-2015)
- BMC FourStroke FS02 (2013)
- Focus Super Bud 29r (2014)
- Giant Anthem Advanced 27.5 (2015)
- Giant XtC Advanced SL 27.5 (2014-2015)
- GT Zaskar 100 (2013)
- Haibike Greed (2012)
- Kona King Kahuna 29er (2003)
- Lapierre Zesty (2014)
- Lapierre Spicy (2014)
- Titici Explosion (2013-2015)
- Titici Flexy (2014-2015)
- Rocky Mountain Element 950 RSL 29" (2014)
- Rocky Mountain Vertex Carbon 29" (2012)
- Yeti SB6 Carbon (2015-2016)
- Yeti SB4.5C Boost 148 (2016)
X-Lock X-E-Thru Boost 12 x 148 (178 mm)
Frames compatibility list
- Bianchi Methanol CV (Boost) (2016-2017)
- Pivot Firebird 27.5 (2017)
X-Lock X-Maxle 12 x 135 (167mm)
Excellent stiffness, variable thinckness axle, 5 mm hex key for a fast and safe closing (wrench not provided).
Available in many anodized colours.
Lenght: 167 mm.
Thread pitch: 1.75 mm.
Made in Italy.
X-Lock X-Maxle 12 x 142-148 (174mm)
Frames compatibility list
- BMC FourStroke FS02 (2014)
- Ibis Mojo SL-R (2013)
- Ibis Mojo HDR (2014)
- Ibis Ripley (2013)
- KTM Myroon Prestige, Prime, Master, Elite 29 (2015)
- KTM Myroon Prestige, Prime, Master, Elite 27 (2015)
- KTM Scarp Prestige, Prime Master, Elite 29 (2015)
- KTM Scarp Prestige, Prime Master, Elite 27 (2015)
- Niner RIP9 (2013-2015)
- Niner SIR9 (2015-2016)
- Trek Procaliber 9.9 SL, 9.8 SL, 9.7 SL (2016)
- Trek Superfly 9.9 SL (2013-2015)
- Trek Superfly 9.8 (2013-2015)
- Trek Superfly 9.7 (2015)
- Trek Superfly 9.6 (2014-2015) => after "closed convert" change
- Wilier 101XN (2014)
X-Lock X-Maxle 12 x 148-150 (182mm)
Excellent stiffness, variable thinckness axle, 5 mm hex key for a fast and safe closing (wrench not provided).
Available in many anodized colours.
Lenght: 182 mm.
Thread pitch: 1.75 mm.
Made in Italy.
Frames compatibility list:
- Niner RKT 9 RDO (Boost 148) (2016)
X-Lock X-Maxle ABP 12 x 142 (192mm)
Frames compatibility list
- Trek Remedy 9.8 27,5 (2016)
- Trek Remedy 9, 8 (2016)
- Trek Superfly FS (2014-2015)
- Trek Fuel EX (2014-2015)
- Trek Slash (2014-2015)
- Some other frames with Split Pivot suspension
X-Lock X-Maxle ABP Boost 12 x 148 (198mm)
Frames compatibility list
- Trek Top Fuel 9.9 SL, 9.8 SL (2016)
- Trek Top Fuel 9, 8 (2016)
- Trek Remedy 29 Carbon (2016)
- Trek Fuel EX 9.9, 9.8 29 (2016)
- Trek Fuel EX 9, 8 29 (2016)
- Some other frames with Split Pivot suspension
