Carbon Ti manufacture these thru axles from 7075 grade aluminium alloy. They are light weight and use a hex key for fitting an removal.
The important specification for a thru axle are head shape (concial or flat), thread diameter, thread length and thread pitch. While thread length can have some leeway thread pitch cannot.
Gloss black is what is normally stocked. Other colours are to order.

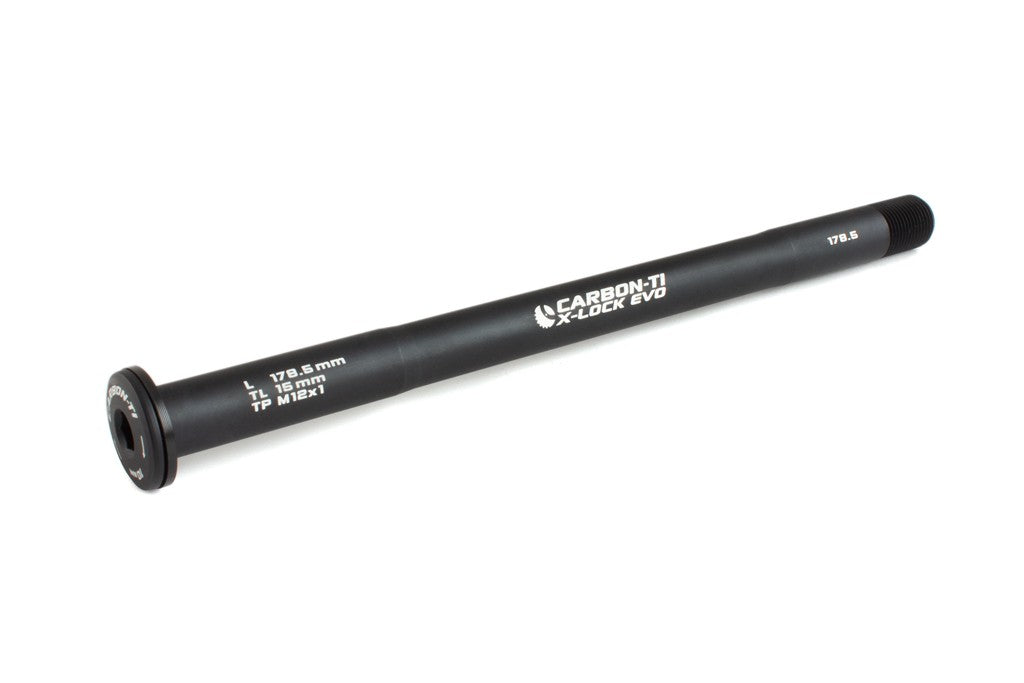

X-Lock EVO 12x1.0 (178.5 mm)
New 2022 model!
Superlight Al7075 rear axle with Boost 12 x 148 mm thru axle standard, 12 mm diameter, 178.5 mm lenght, M12x1 thread.
Excellent stiffness, variable thickness axle, laser etched graphics, 6 mm hex key (not provided) for a fast and safe closing.
Available in many anodized colours.
Made in Italy.
Superlight Al7075 rear axle with Boost 12 x 148 mm thru axle standard, 12 mm diameter, 178.5 mm lenght, M12x1 thread.
Excellent stiffness, variable thickness axle, laser etched graphics, 6 mm hex key (not provided) for a fast and safe closing.
Available in many anodized colours.
Made in Italy.
- 12 mm diameter,
- flat head with a 19.75mm OD
- 178.5 mm length
- M12x1 thread.
- 15mm thread length
- 32g
Fits the following but not exhuastive list of bicycles
- 2022 KTM Myroon Master (UDH interface)
- 2022 Trek Supercaliber (UDH interface)
- 2022 Trek Procaliber (UDH interface)
