Carbon Ti manufacture these thru axles from 7075 grade aluminium alloy. They are light weight and use a hex key for fitting an removal.
The important specification for a thru axle are head shape (concial or flat), thread diameter, thread length and thread pitch. While thread length can have some leeway thread pitch cannot.
Gloss black is what is normally stocked. Other colours are to order.

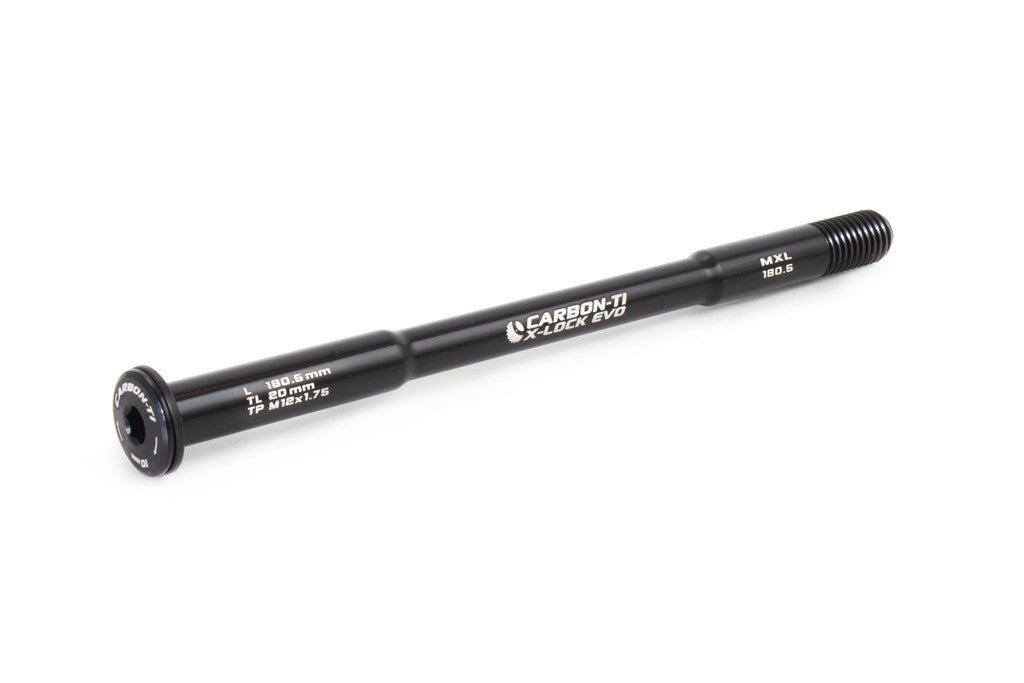

X-Lock EVO 12x1.75 X-Maxle (180.5 mm)
Superlight Al7075 rear axle with Maxle RockShox 12 x 148-150 mm standard, 12 mm diameter, 180.5 mm lenght, M12x1.75 thread.
Excellent stiffness, variable thickness axle, laser etched graphics, 6 mm hex key (not provided) for a fast and safe closing.
Available in many anodized colours.
Made in Italy.
Excellent stiffness, variable thickness axle, laser etched graphics, 6 mm hex key (not provided) for a fast and safe closing.
Available in many anodized colours.
Made in Italy.
- 12 mm diameter,
- flat head
- 180.5 mm length
- M12x1.75 thread.
- 20mm thread length
- 34.5g
Fits the following but not exhuastive list of bicycles
- Mondraker F-Podium (2020-2021)
- Niner RKT 9 RDO (Boost 148) (2016)
- Trek Supercaliber (2020-2021))
